You are here  Home -> Products  ->  Direct‑cooling block ice machine  ->  60 t/d direct-cooling block ice machine / custom large-scale ice plant

【Origin Pic】

Category: Direct-cooling block ice machine

Applications: Icing for seafood at fishing docks, vegetable preservation and transport, offshore fishing, fresh market cooling, fish transport icing, chemical process cooling, poultry slaughtering, aquatic product processing, mine cooling, artificial ski resorts, etc.

Advantages of direct-cooling block ice machine:

A. Automatic defrost/de‑icing without valve switching – optional hot‑gas or water defrost.

B. Automatic water filling with microcomputer‑controlled water level, adjustable as needed.

C. Automatic lifting/lowering with limit switches – stops automatically at end positions.
[Next]

60 t/d direct-cooling block ice machine / custom large-scale ice plant

Product Overview

Category: Direct‑cooling block ice machine

A direct‑cooling block ice machine (also called direct‑cooling block ice maker) produces ice through direct heat exchange between the evaporator and the ice mould. Compared with traditional brine‑type block ice machines, it features a simpler structure, smaller footprint, and stable operation. It is widely used in fishing docks, seafood processing, vegetable preservation, long‑haul transport, fresh markets, fish transport, chemical cooling, poultry slaughtering, mine cooling, artificial ski resorts, and more.

MEIOCO direct‑cooling block ice machines are available in capacities from 3 t/d up to 50 t/d, so you can choose the model that best matches your actual ice demand.

3‑50 t/d

Capacity range

Direct cooling

Ice‑making method

Block / Brick ice

Ice type

Multi‑industry

Applications

Applications: Icing for seafood at fishing docks, vegetable preservation and transport, offshore fishing, fresh market cooling, fish transport, chemical cooling, poultry slaughtering, seafood processing, mine cooling, artificial ski resorts, etc.

MEIOCO Direct‑Cooling Block Ice Machine Advantages
3‑50 t/d
Direct‑cooling design
PLC intelligent control
Easy operation
Stable performance
Compact footprint
Portable & flexible
No brine tank needed
  1. PLC intelligent control – fully automatic, easy to operate, and highly reliable.
  2. Compact design with small footprint; easy to relocate – ideal for sites with limited space or frequent movement.
  3. Configurable with various ice mould sizes to meet different ice‑weight requirements.
  4. No brine tank – eliminates brine preparation and maintenance for hassle‑free operation.
  5. Direct heat exchange allows ice to be used immediately after formation, maximizing production efficiency.
  6. Suitable for fishing docks, seafood processing, vegetable preservation, cold‑chain transport, mine cooling, and many other industries.
Technical Specifications
Ice production Installed power Ice weight Cycles per 24h Machine dimensions
L × W × H
3T/24H 12KW 25KG/50KG 24H/2 times 4500*2000*2800
5T/24H 23KW 25KG/50KG 24H/2 times 5000*2200*2800
10T/24H 43KW 25KG/50KG 24H/2 times 6000*2600*2800
15T/24H 65KW 25KG/50KG 24H/2 times 8000*2650*2800
20T/24H 79.8KW 25KG/50KG 24H/2 times 9800*3000*2800
25T/24H 100KW 25KG/50KG 24H/2 times 11800*3200*2800
30T/24H 120KW 25KG/50KG 24H/2 times 12800*3200*2800
40T/24H 150KW 25KG/50KG 24H/2 times 14500*3400*2800

Notes:

1. The above models are standard capacities; custom sizes are available upon request.

2. Voltage range: 380V~420V, 50Hz/60Hz, 3‑phase.

3. Cooling methods: air‑cooled, water‑cooled, or evaporative‑cooled – selectable per customer requirements.

4. Ice block dimensions and specifications can be customized.

5. Due to continuous technological improvements, specifications are subject to change without prior notice.

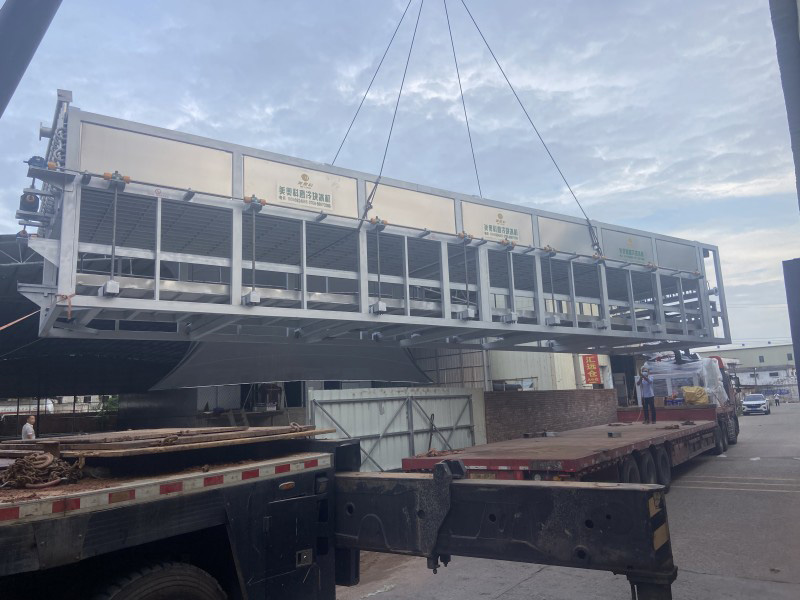

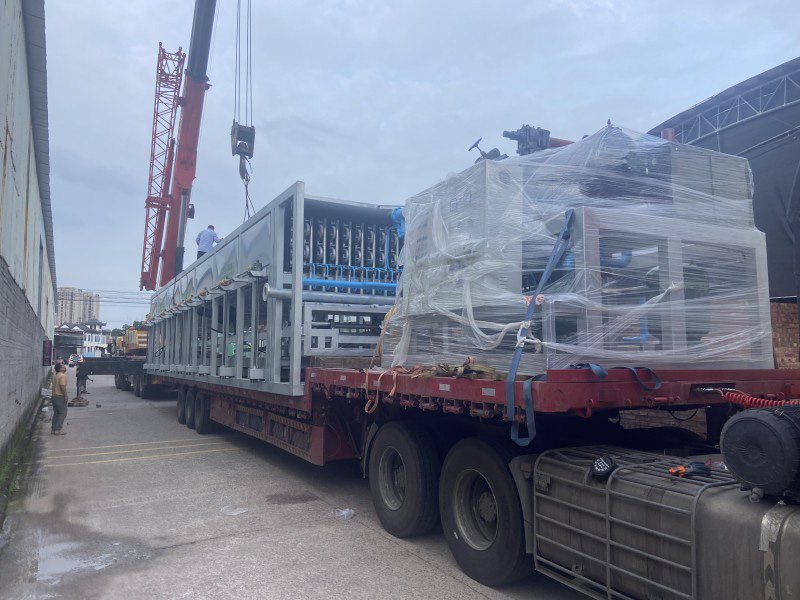

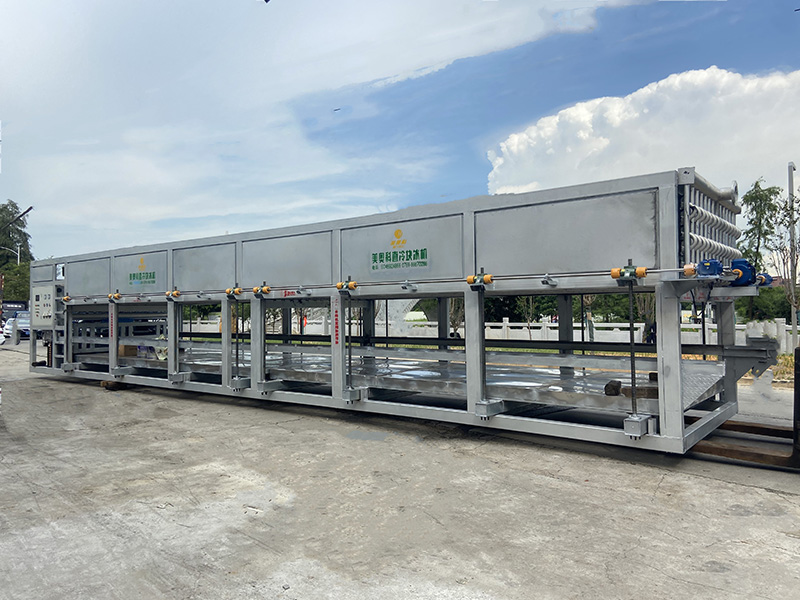

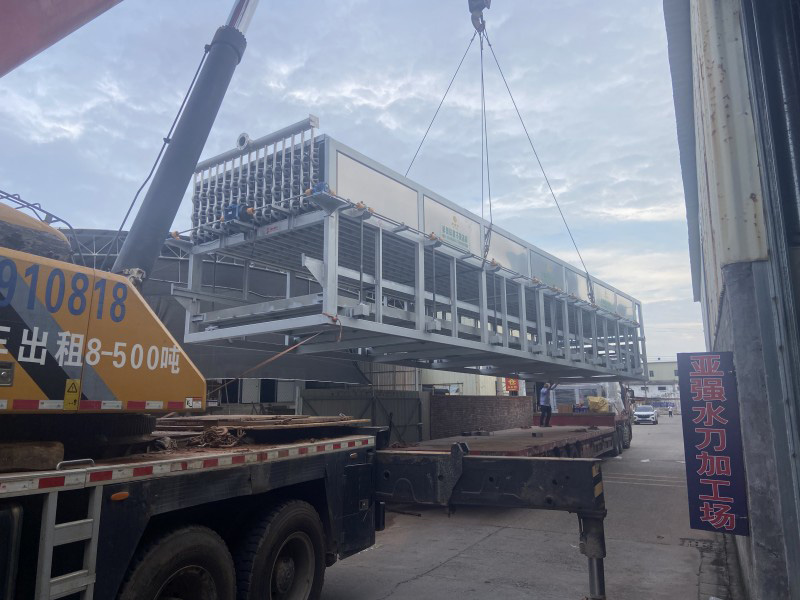

Machine Gallery
Direct‑cooling block ice machine
Direct‑cooling block ice machine
MEIOCO – Brand Strength
1
MEIOCO has a 15‑year R&D and production team with core ice‑making expertise, ensuring superior quality.
2
An industry leader with a large manufacturing base – integrating production, R&D, and sales.
3
Full product range: flake ice machines, direct‑cooling block ice machines, cube ice machines, brine‑type block ice machines, and tube ice machines.
4
Complete in‑house production equipment – from heat treatment to forming, with strict quality control at every step.
5
Fast delivery: small flake ice machines in stock, medium units in 2 days, large units in 12‑25 days.
6
Reliable and stable quality at competitive prices, low failure rate, 12‑month warranty, and lifetime maintenance support.
7
MEIOCO offers nationwide after‑sales service with on‑site repair within 24 hours.
