You are here  Home -> Products  ->  Brine‑type block ice machine  ->  100 t/d large brine block ice machine / brine block ice maker

【Origin Pic】

Category: Brine‑type block ice machine

Applications: Icing for seafood at fishing docks, vegetable preservation and transport, offshore fishing, fresh market cooling, fish transport icing, chemical process cooling, poultry slaughtering, seafood processing, mine cooling, artificial ski resorts, etc.

The brine‑type block ice machine (also called ice block press) uses brine as the heat exchange medium. As the brine temperature drops, the water inside the ice moulds freezes into ice. All parts of the brine tank that come into contact with brine are made of stainless steel or carbon steel plates.

Ice mould material: stainless steel / hot‑dip galvanized steel sheet

100 t/d large brine block ice machine / brine block ice maker

Basic Product Overview

Category: Brine‑type block ice machine

The brine‑type block ice machine (also called ice block press) uses brine as the heat exchange medium. As the brine temperature drops, the water inside the ice moulds freezes into ice. All parts of the brine tank that come into contact with brine are made of stainless steel or carbon steel plates. Ice moulds are available in two materials: stainless steel or hot‑dip galvanized steel sheet.

10kg

Standard ice weight

25kg

Standard ice weight

50kg

Standard ice weight

100kg

Standard ice weight

Ice weight is customizable upon request – available options: 10kg/15kg/20kg/25kg/50kg/100kg.

Applications: Icing for seafood at fishing docks, vegetable preservation and transport, offshore fishing, fresh market cooling, fish transport icing, chemical process cooling, poultry slaughtering, seafood processing, mine cooling, artificial ski resorts, etc.

System Components & Model Classification
Ice moulds: stainless steel / hot‑dip galvanized steel
Custom non‑standard ice moulds available
Small units (1‑20t) – factory assembled & shipped
Large units (20t+) – on‑site assembly
Full set of standard accessories
Multi‑voltage options for global markets
  1. Complete hardware package: control panel, ice‑making unit, agitator, evaporator, ice moulds, brine tank, melting tank, tilting frame, water filler, and overhead crane for ice lifting.
  2. Small units: ice production capacity 1‑20 tons, factory‑assembled and shipped – easy transport, relocation, and on‑site installation.
  3. Large units: ice production capacity 20 tons and above – brine tank constructed on‑site, components shipped for on‑site assembly and commissioning.
Core Product Advantages

Proven brine heat exchange with durable, corrosion‑resistant materials

Indirect heat exchange via brine tank welded from carbon steel or stainless steel plates. Ice moulds are standard SUS304 stainless steel or galvanized steel – resistant to brine corrosion for long service life.

Multiple evaporator options & customizable ice weight (5‑100kg)

Available with shell‑and‑tube or evaporator coil type evaporators. Ice moulds can be custom‑made, covering ice weights from 5kg to 100kg to suit various ice‑use requirements.

Extensive capacity range with large‑tank design – energy saving & faster freezing

Capacity from 1 ton up to 2,000 tons with no upper limit. High‑capacity systems feature a single‑tank 50‑ton design for more efficient heat exchange, faster freezing, and reduced overall power consumption.

Low energy consumption – professional design reduces operating costs

Professional process consumes approximately 75 kWh per ton of ice – excellent energy efficiency. The mature, stable structure is ideal for long‑term, continuous industrial ice production.

Electrical Specifications & Operating Conditions

Wide voltage range – adaptable to global power systems

Supported power supplies: 380V~420V, 50Hz/60Hz, 3‑phase; 220~240V, 60Hz, 3‑phase; 440V~480V, 60Hz, 3‑phase

Standard test conditions

Standard operating conditions: inlet water temperature 20°C, ambient temperature 30°C

Note

Specifications are subject to change without prior notice due to continuous technological improvements.

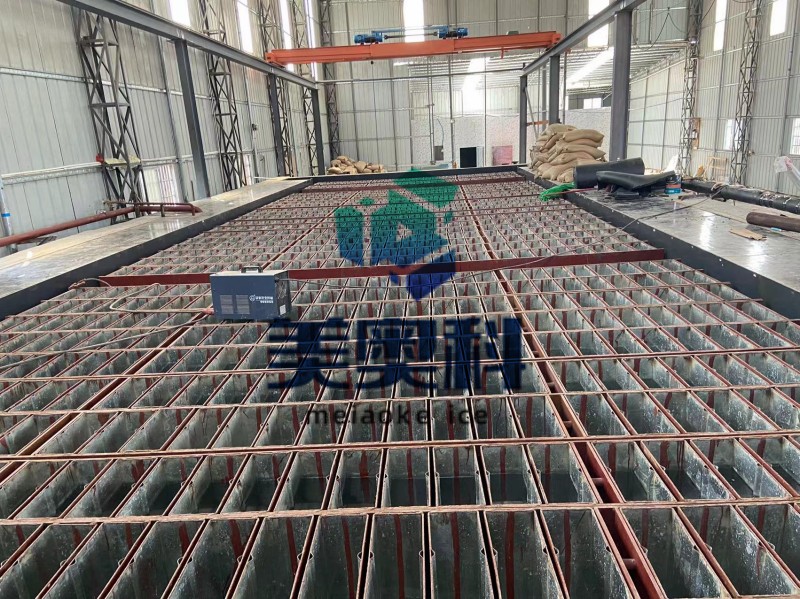

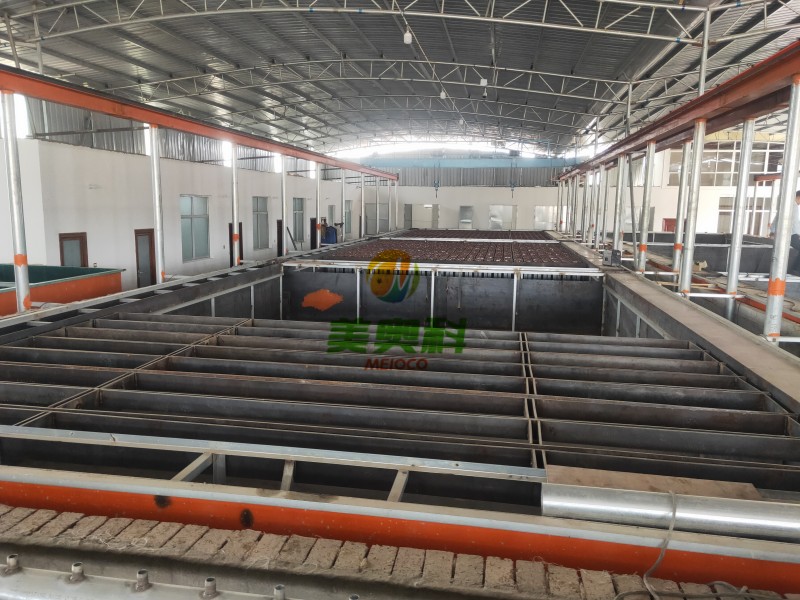

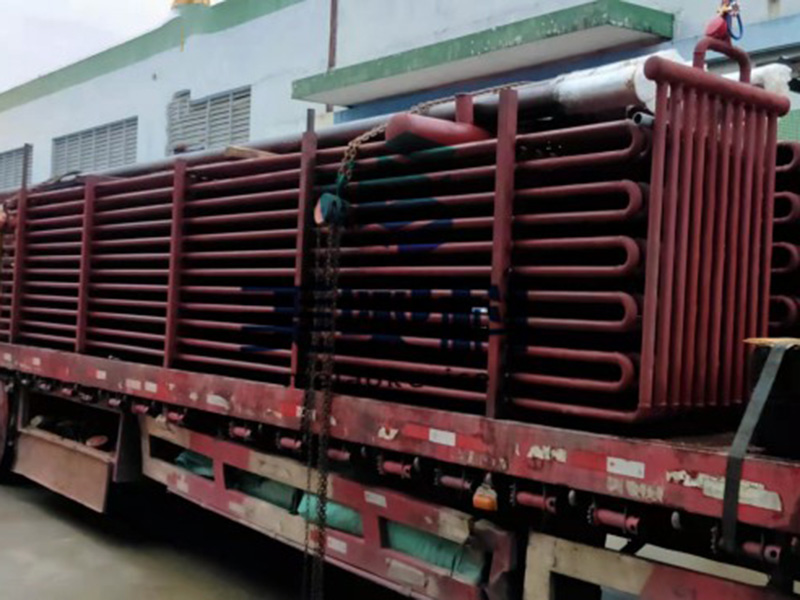

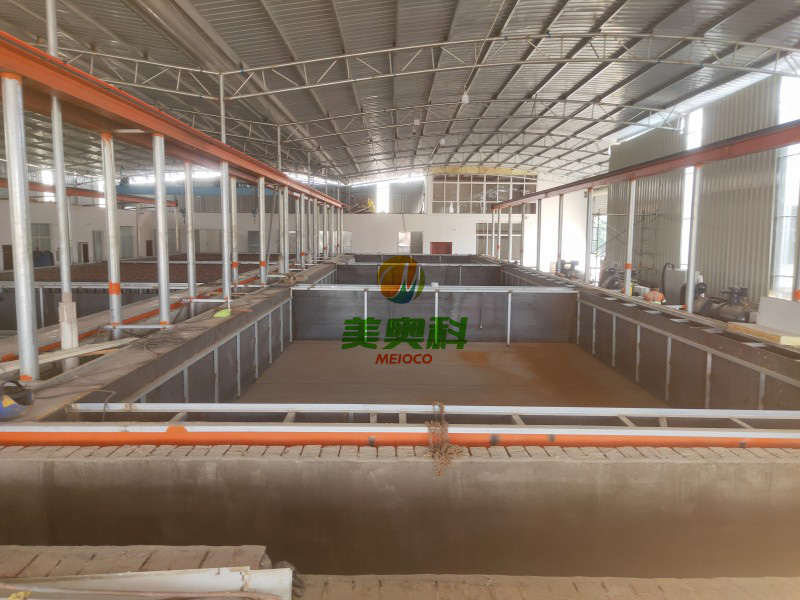

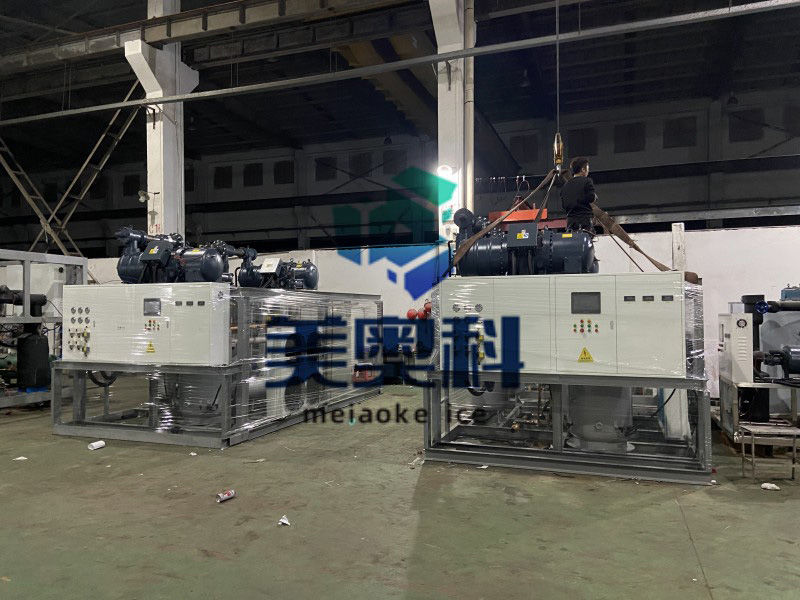

Machine Gallery
Brine‑type block ice machine
Brine‑type block ice machine
Brine‑type block ice machine
